MULTIPURPOSE VESSEL - SEA BUFFALO

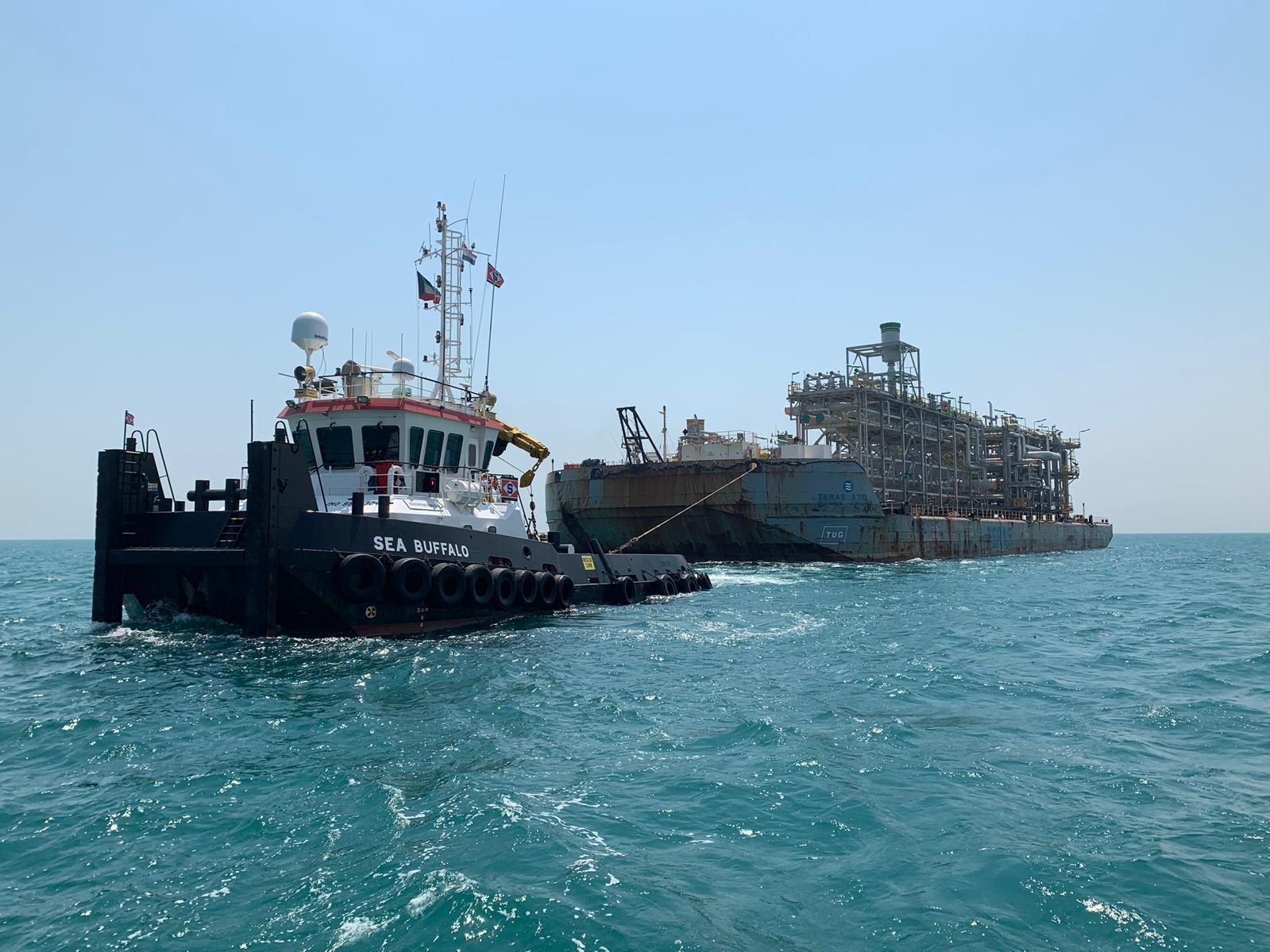

Sea Buffalo is a Multi-Purpose vessel, specially designed to work in shallow as well as in deeper waters with an unrestricted sailing area. The Sea Buffalo has a bollard pull of 29.9 tonnes, an operating draft of 2.72 meters and an increased stability for diverse worldwide operations. Classed by Bureau Veritas with an unrestricted sailing area and Ice Class 1D notation.

The Sea Buffalo is equipped with a heavily strengthened square push bow, a heavy Heila deck crane, a towing- and anchor handling winch and a spacious aft deck. The work deck of the Sea Buffalo is equipped with towing pins, a chain stopper and a stern roller. All to ensure the safety of the operations, whether towing or while performing anchor handling activities. Our vessels have a safe working environment for our crew. The Sea Buffalo is manned with an experienced crew and equipped with the right quality gear for each job. Accommodation on board is provided for six persons.

With its multi-purpose design, the Sea Buffalo can be used for a wide-ranging scope of work, covering, but not limited to, towing (single and double), pushing, dredging support, salvage assistance, wreck removal, harbor maintenance, buoy and anchor handling, pipe and cable laying, deck and/or cargo transportation and pollution control in both inland and coastal waters.

Technical specifications Contact us

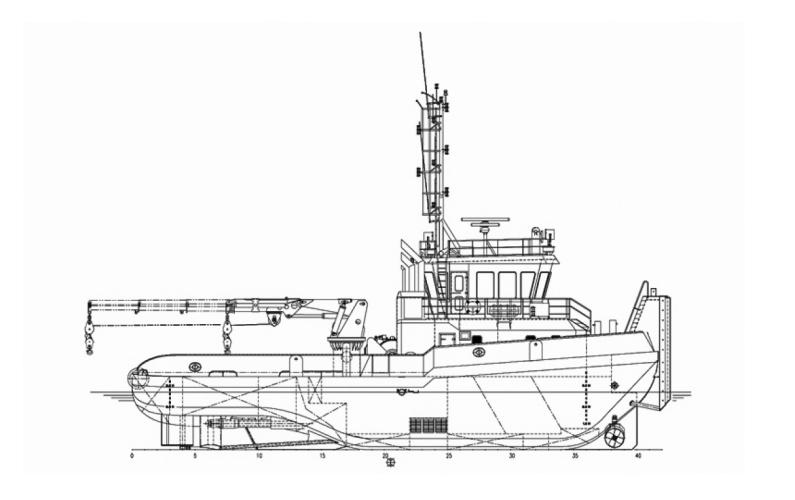

MULTIPURPOSE VESSEL SEA BUFFALO

VESSEL SPECIFICATIONS

Type Multipurpose vessel
Classification Bureau Veritas Hull • Mach • / Unrestricted Navigation / AUT-UMS (SS) - Ice Class 1D
IMO number 9528304
Year built 2009 - Damen Hardinxveld, NL
Flag Dutch
Port of registry Vlissingen
Call sign PBME
MMSI 245038000
Length overall 25,80 m
Breath overall 10,00 m
Minimum draft 2,50 m
Operational Draft 2 m
Maximum draft 2,80 m
Minimum air draft 9,10 m
Maximum air draft 15,70 m
Gross tonnage 230 t
Net tonnage 69 t
Typel Heila HLRM 140-3S
Capacity 10,00 t @ 12,30 m
Fuel oil 79,8 m³
Fresh water 40,1 m³
Lubricating oil 2,4 m³
Hydraulic oil 0,5 m³
Dirty oil 1,7 m³
Sewage 4,4 m³
Bilge water 2,4 m³
Main engines 2x CAT 3508 BTA
Total power 1.492 kW / 2028 bhp
Propulsion 2x Solid screw propeller LB5, 295 rpm
Bowthruster Veth Jet 150 kW
Main generator sets 2x CAT C4.4
Fuel oil transfer pump 12 m³/h
Fresh water transfer pump 12 m³/h
Fresh water maker N/A
Air compressor ALUP 5,5 kW 10 bar
Powerpack 1x CAT C9
Free deckspace 52,0 m²
Deck strength 5,0 t/m²
Towing winch Kraaijeveld 60 t / 70 t (pull/hold) 700 m x 38 mm
Anchor Handling Winch 60 t / 70 t (pull/hold) 200 m x 44 mm
Tugger winch N/A
Towing pins Shark Jaw Fork SWL 50 t
Pushbow Full length rubber fendered
Stern roller SWL 100t
Bollard pull 29,9 t
Maximum speed 10,50
Economic speed 8,00
Horsepower 2028
Persons 6
Single cabin 2
Double cabin 2
Air conditioned Yes

The information is for guidance purposes only and may be subject to changes.

PROVEN TRACK RECORD

The Sea Buffalo has a proven track record and has worked all over the world in areas with limited maneuverability. Contact our Commercial Department for any additional information you might need. Sea Buffalo is ready to support your project anywhere in the world in a diverse working environment.
