SHOALBUSTER 3209 - SEA INDIA

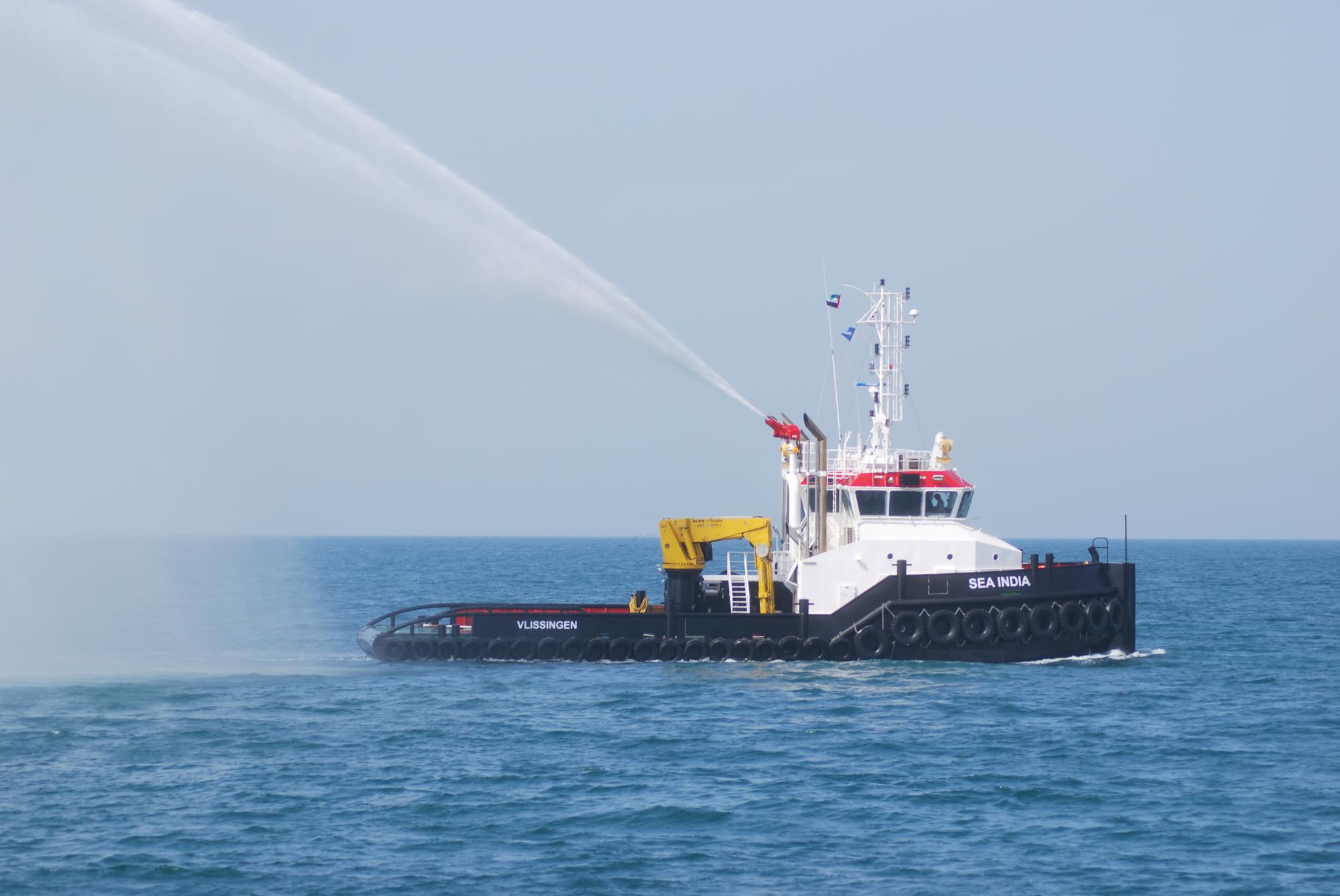

Sea India is a Shoalbuster 3209 - FiFi 1, specially designed to work in shallow as well as in deeper waters with an unrestricted sailing area. The Sea India has a bollard pull of 50 tonnes, an operating draft of 3.00 meters and an increased stability with the combination of a large capacity of fuel oil and fresh water, perfect for diverse worldwide operations.

With its multi-purpose design, the Sea India can be used for a wide-ranging scope of work, covering, but not limited to, towing (single and double), pushing, dredging support, salvage assistance, wreck removal, harbor maintenance, harbor towage, escorting, buoy and anchor handling, anchor recovery, pipe and cable laying, deck and/or cargo transportation and pollution control in both inland and coastal waters.

The Sea India is manned with an experienced crew and equipped with the right quality gear for each job. The Sea India is equipped with a fully integrated Fire Fighting system, a heavy Heila deck crane, a towing- and anchor handling winch and a spacious aft deck. The work deck of the Sea India is equipped with towing pins, a karm fork and a wide stern roller. All to ensure the safety of the operations, whether towing or while performing anchor handling activities. Our vessels have a safe working environment for our crew.

Technical specifications Contact us

SHOALBUSTER 3209 SEA INDIA

VESSEL SPECIFICATIONS

Type Shoalbuster 3209
Classification Bureau Veritas • Hull • Mach • Unrestricted navigation / AUT-UMS (SS) - Tug - Fire Fighting ship 1 - Water spraying
IMO number 9760029
Year built 2014 - Damen Albwardy, UAE
Flag Dutch
Port of registry Vlissingen
Call sign PCOB
MMSI 244830656
Length overall 32,27 m
Breath overall 9,35 m
Minimum draft 2,90 m
Operational Draft 3,00 m
Maximum draft 3,20 m
Minimum air draft 10,30 m
Maximum air draft 16,85 m
Gross tonnage 335 t
Net tonnage 100 t
System FIFI 1
Type FFS 1200
Capacity 2x 1200 m³ / hr
Typel Heila HLRM 0170-4SL
Capacity 7,9 t @ 15,90 m
Fuel oil 218,2 m³
Fresh water 40,9 m³
Lubricating oil 7,3 m³
Hydraulic oil 3,0 m³
Dirty oil 3,7 m³
Sewage 3,3 m³
Bilge water 4,3 m³
Main engines 2x CAT 3512 TAC
Total power 2.610 kW / 3546 bhp
Propulsion 2x Solid screw propeller 5, 362 rpm
Bowthruster 350 bhp, hydraulic driven
Main generator sets 2x CAT C4.4 TA
Fuel oil transfer pump 50m³ /h @ 4.8 bar
Fresh water transfer pump 50m³ /h @ 4.8 bar
Fresh water maker HEM H25F3HEM 25/1300F3 4,8 t/24h
Air compressor 2x ABAC 19 m³/h 9 bar
Powerpack 1x CAT C18 TAB
Free deckspace 72,0 m²
Deck strength 5,0 t/m²
Towing winch DMT Waterfall 50 t / 150 t (pull/hold) 800 m x 44 mm
Anchor Handling Winch 100 t / 150 t (pull/hold) 720 m x 44 mm
Tugger winch Dromec 12 t
Towing pins Shark Jaw Fork SWL 75 t
Pushbow Full length rubber fendered
Stern roller SWL 100t
Bollard pull 49 t
Maximum speed 11,60
Economic speed 8,50
Horsepower 3546
Persons 7
Single cabin 3
Double cabin 2
Air conditioned Yes

The information is for guidance purposes only and may be subject to changes.

PROVEN TRACK RECORD

The Sea India has a proven track record and has worked all over the world in areas with limited maneuverability. Contact our Commercial Department for any additional information you might need. Sea India is ready to support your project anywhere in the world in a diverse working environment.
