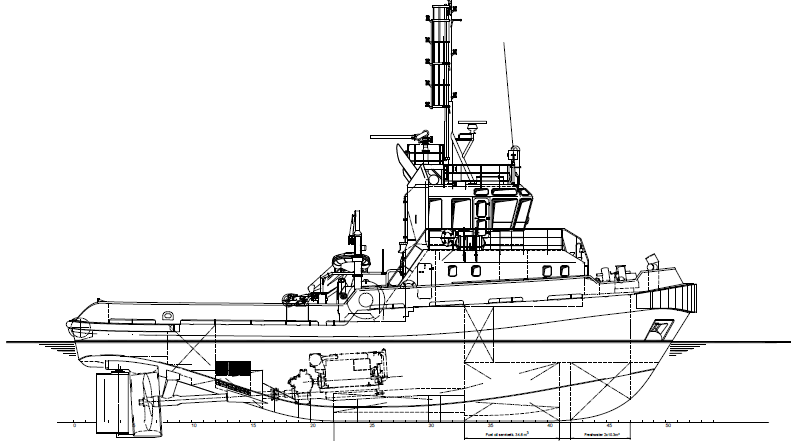

AHT - Sea Vanquish

Sea Vanquish is a Stan Tug 2909 - Fifi 1, with its excellent seakeeping behavior, the maneuverability the Sea Vanquish has outstanding towing characteristics. The Sea Vanquish has a bollard pull of 68 tonnes, classed by Bureau Veritas with an unrestricted sailing area.

The Sea Vanquish is manned with an experienced crew, equipped with high quality gear and has a fully integrated Fire Fighting system. With its multi-purpose design and outstanding towing characteristics, the Sea Vanquish can be used for worldwide operations such as, but not limited to, single and double towing, pushing, anchor handling, anchor recovery, dredging support, rig move assistance, salvage assistance, wreck removal, harbor towage, escorting and deck and/or cargo transportation.

The Sea Vanquish is also equipped with a towing- and anchor handling winch, deck crane and Karmoy towing pins. Accommodation on board is provided for 8 persons.



Technical specifications Contact us

AHT Sea Vanquish

VESSEL SPECIFICATIONS

Type AHT Damen Stantug
Classification Bureau Veritas Hull • Mach • AUT-UMS - Tug - Fire Fighting ship 1 - Water spraying / unrestricted
IMO number 9559573
Year built 2013
Flag Dutch
Port of registry Vlissingen
Call sign PGBN
MMSI 246702000
Length overall 30.02 m
Breath overall 8.80 m
Minimum draft 4.20 m
Operational Draft 4.30 m
Maximum draft 4.40 m
Minimum air draft 16.00 m
Maximum air draft 16.00 m
Gross tonnage 272 t
Net tonnage 81 t
System FiFi 1
Type Caterpillar 3406E TA
Capacity 2x 600 m³ / hr
Typel Heila 25/4S
Capacity 1,50 t @ 12,30 m
Fuel oil 135.10 m³
Fresh water 20.60 m³
Lubricating oil 3.90 m³
Hydraulic oil 1.50 m³
Dirty oil 2.50 m³
Sewage 1.80 m³
Bilge water 2.90 m³
Main engines 2 x CAT Type 3516B TA HD/B
Total power 3.542 kW / 4750 bhp
Propulsion 2 x Kaplan II fixed pitch propellers
Bowthruster 350 bhp, elektrical driven
Main generator sets 2x CAT C4.4 TA
Fuel oil transfer pump 32 m³/h @ 1.5 bar
Fresh water transfer pump 32 m³/h @ 1.5 bar
Fresh water maker N/A
Air compressor N/A
Powerpack N/A
Free deckspace 66
Deck strength 3,0 t/m²
Towing winch DMT Waterfall 40 t / 120 t (pull/hold) 750 m x 48 mm
Anchor Handling Winch 40 t / 120 t (pull/hold) 500 m x 48 mm
Tugger winch Brevini 8 t
Towing pins Karmoy SWL 100 t
Pushbow Full length rubber fendered
Stern roller SWL 35t
Bollard pull 71,0 t
Maximum speed 13.4
Economic speed 7
Horsepower 4750
Persons 8
Single cabin 2
Double cabin 3
Air conditioned Yes

The information is for guidance purposes only and may be subject to changes.

PROVEN TRACK RECORD

The Sea Vanquish has a proven track record and has worked all over the world. Contact our Commercial Department for any additional information you might need. Sea Vanquish is ready to support your project anywhere in the world in a diverse working environment.
