EuroCarrier 2712 - Sea Phanagoria

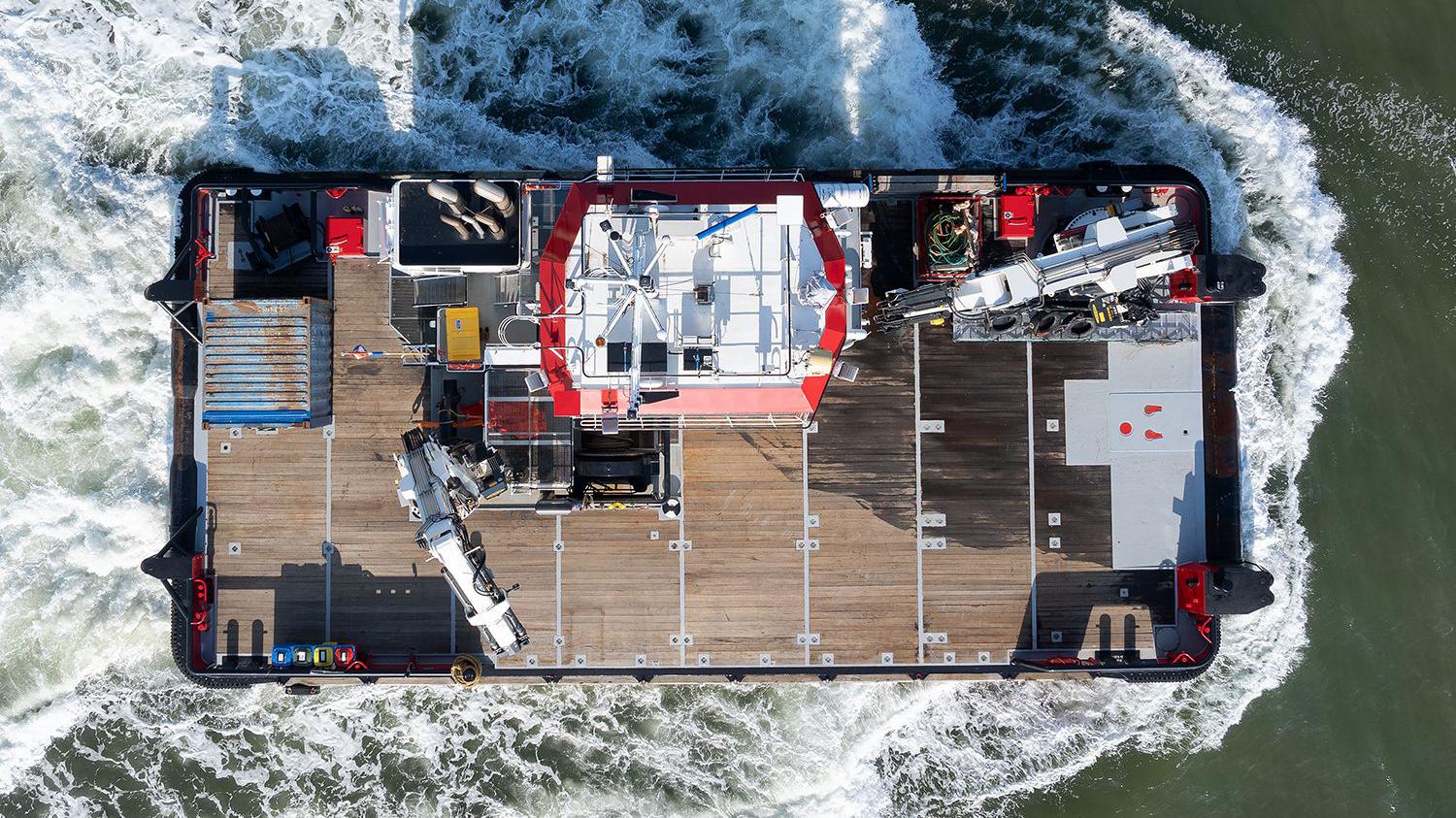

Sea Phanagoria is an EuroCarrier 2712, specially designed for optimal functionality, the Sea Phanagorias is equipped with Dynamic Positioning (Class 1), two powerful HEILA deck cranes, has a Bollard Pull of 35 tons and can operate in shallow waters with a draft of 3.00 meters. Sea Phanagoria boasts an impressive deck space, allowing for efficient cargo handling, equipment storage, and various offshore activities. Its advanced propulsion system guarantees enhanced maneuverability and stability, enabling precise positioning even in challenging conditions.

The Sea Phanagoria is powered by Tier III main engines, ensuring compliance with stringent emissions standards while maintaining exceptional performance. This eco-friendly feature underscores our commitment to sustainability, reducing environmental impact during the vessel's operations.

Safety is paramount, and the Sea Phanagoria excels in this aspect. Equipped with the latest safety features and adhering to stringent industry regulations, this vessel provides a secure and secure working environment for crew members and project personnel alike.

Whether it's supporting offshore construction, subsea operations, or transportation logistics, the Sea Phanagoria delivers outstanding capabilities that ensure seamless execution of projects in any environment.

Technical specifications Contact us

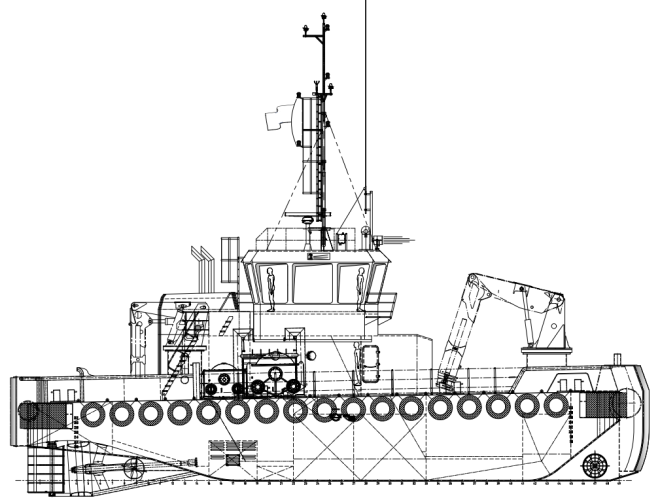

EUROCARRIER 2712 Sea Phanagoria

VESSEL SPECIFICATIONS

Type EuroCarrier 2712
Classification Bureau Veritas • Hull • Mach • / Unrestricted Navigation / AUT-UMS / DYNAPOS AM/AT
IMO number 9868522
Year built 2022 - Neptune Hardinxveld, NL
Flag Dutch
Port of registry Vlissingen
Call sign PEYU
MMSI 245916000
Length overall 27.00 m
Breath overall 12.00 m
Minimum draft 2.72 m
Operational Draft 3.00 m
Maximum draft 3.66 m
Minimum air draft 9.5 m
Maximum air draft 18.5 m
Gross tonnage 292 t
Net tonnage 87 t
Typel AFT: Heila HLRM 140-3S / FWD: Heila HLRM 280-3SL
Capacity AFT: 26t @ 5.65m FWD: 28.8t @ 9.48m
Fuel oil 94.8 m³
Fresh water 35.6 m³
Lubricating oil 1.98 m³
Hydraulic oil 1.91 m³
Dirty oil 1.76 m³
Sewage 7.28 m³
Bilge water 10.67 m³
Main engines 2x Caterpillar C32 Tier III
Total power 1940 kW at 1800 RPM
Propulsion 2x fixed propellor - 1850mm dia in nozzle
Bowthruster 300kW, tunnel thruster in SB pushbow
Main generator sets 2 x Volvo D13, 2 x 360kW @ 1500 rpm, 1 x Cat C4.4, 1 x 85kW @ 150 rpm
Fuel oil transfer pump SMEM Type 7SM3 22Kw/2955rpm
Fresh water transfer pump VICTORPUMPEN/580G3/T+F
Powerpack ROTOR NL- 440/690V 90kW @ 185rpm
Free deckspace 138 m2
Deck strength 8.5t / m2
Anchor Handling Winch Tecnospirit 50t / 75t (pull/hold)
Tugger winch 15t
Towing pins Aft: manual guide pins & gob eye flush in deck Fwd: hydraulic guide pins & hydraulic chainstopper
Pushbow 235N/mm2
Stern roller dia 838mm, length 5m / BOW Roller: dia 1207mm, 6 m
Bollard pull 35 t
Maximum speed 10,00
Economic speed 8,00
Horsepower 1938 kW
Persons 14
Air conditioned Yes

The information is for guidance purposes only and may be subject to changes.

PROVEN TRACK RECORD

The Sea Phanagoria has a proven track record and has worked in areas with limited maneuverability. Contact our Commercial Department for any additional information you might need. Sea Phanagoria is ready to support your project anywhere in the world in a diverse working environment.
